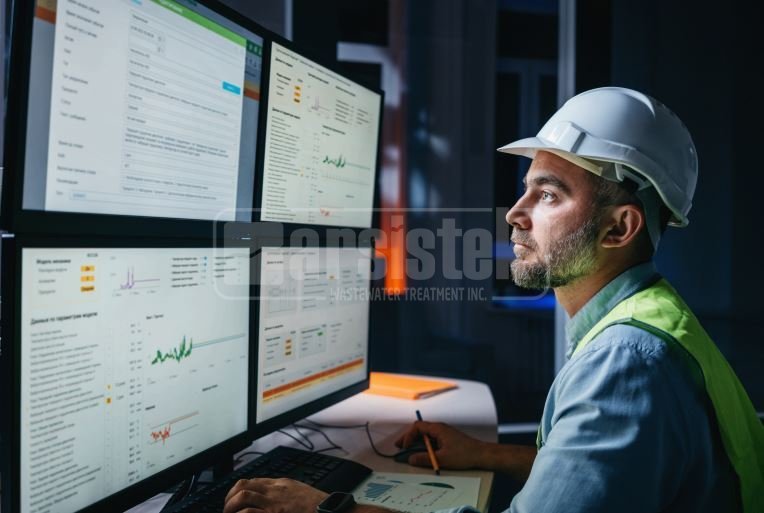

SCADA and Automation in Wastewater Treatment Plants: A Modern Operational Guide

Short answer: The modern wastewater treatment SCADA system consists of 4 layers: (1) Field sensors and actuators (DO, pH, MLSS, flow rate, valve/pump control), (2) PLC (Programmable Logic Controller — automatic decisions), (3) SCADA software (operator interface, historical data, alarm management), (4) Upper system (reporting, SEÇBİS integration, remote access). Properly established automation significantly reduces energy and chemical OPEX.

What is SCADA?

SCADA (Supervisory Control and Data Acquisition) is the software layer that visualizes sensor data collected in industrial processes, provides the operator with a control interface, and allows for automatic interventions.

Main functions of SCADA in a wastewater treatment plant:

• Visual interface (HMI): The operator monitors all equipment in the facility from a single screen
• Data logging: Second-to-minute values are written to the historical database
• Alarm management: Immediate alerts for limit exceedances, equipment failures, sensor errors
• Automatic control: Commands to the PLC in case of setpoint deviations
• Reporting: Automatic shift, daily, monthly reports
• Remote access: Engineers can connect from anywhere via web/mobile panel

4-Layer Automation Architecture

Layer 1: Field Sensors and Actuators

Data collection and physical intervention points:

• Sensors: Dissolved oxygen (DO), pH, ORP, conductivity, AKM (UV-VIS), MLSS, temperature, flow rate (electromagnetic), level (ultrasonic/radar), TMP (pressure), turbidity
• Actuators: Valve motor (motorized), pump frequency driver (VFD), blower speed control, dosing pump, scraper motors

Layer 2: PLC (Programmable Logic Controller)

The PLC is the "brain" of the facility — it makes automatic decisions within seconds:

• If DO drops below 2 mg/L → increase blower speed
• If pH drops below 6.5 → start NaOH dosing
• If membrane TMP exceeds 300 mbar → trigger CIP routine
• If outlet flow decreases → adjust permeate pump speed
• If sludge level is high → automatic sludge discharge

Common PLC brands: Siemens (S7-1500, S7-1200), Allen-Bradley (CompactLogix), Schneider (Modicon), Mitsubishi (FX series), Beckhoff.

Layer 3: SCADA Software

Operator interface + historical data layer:

• Visual HMI panels: Live values on P&ID diagram
• Trend graphs: Hourly/daily/monthly parameter changes
• Alarm window: Active alarms, history, acknowledgment system
• Recipe management: SBR process cycles, MBR CIP regimes
• Reporting: Automatic PDF/Excel daily, monthly summary

Common SCADA software: Siemens WinCC, Wonderware (AVEVA System Platform), Ignition (Inductive Automation), Rockwell FactoryTalk View, GE iFIX, Schneider Citect.

Layer 4: Upper System (Enterprise)

Database + analytics + reporting:

• Historical database (Historian) — years of second data
• Web/mobile dashboard — summary for managers
• SEÇBİS integration — automatic data flow to the Ministry of Environment
• ERP/MES connection — chemical stock, maintenance work orders
• AI/ML analytics — predictive maintenance, optimization

Critical Sensors — What Measures What?

7 Cost Savings Provided by Automation

1. Aeration Energy Savings (largest)

In a wastewater treatment plant, 50-70% of energy consumption comes from blowers. With DO controlled VFD blower:

• Fixed blower (relay on/off) → DO 4-5 mg/L (unnecessarily high)
• Automatic control → DO stable at 2-2.5 mg/L (sufficient)
• Result: blower energy savings of 15-30%

2. Chemical Dosing Optimization

Proportional dosing instead of fixed dosing:

• FeCl3 dosing according to outlet P sensor — prevents unnecessary dosing
• NaOH/H2SO4 according to pH — prevents manual error
• NaOCl CIP — triggered only when TMP threshold is exceeded
• Typical savings: 20-30%

3. Membrane Life Extension

With TMP monitoring + smart CIP regime, membrane life extends from 3-4 years to 7-10 years — significant CAPEX savings over the years.

4. Personnel Efficiency

1 operator + remote monitoring is sufficient instead of 2-3 operators per shift. Automatic reporting instead of manual reading + recording.

5. Guaranteed Outlet Quality

Automatic intervention in anomaly detection → significantly reduces the risk of discharge limit exceedance. Prevents penalties.

6. Predictive Maintenance

Monitoring equipment vibration, current, temperature → part replacement before failure. Reduces unplanned downtime.

7. Regulatory Compliance

Automatic data transfer to SEÇBİS → eliminates manual reporting burden, real-time compliance.

Alarm Management — Which Alarm Triggers Which Action?

SEÇBİS Integration

SEÇBİS (Continuous Emission and Environmental Information System) is the environmental monitoring platform of the Ministry of Environment and Urbanization. Wastewater treatment plants larger than a certain capacity must stream real-time data from their SCADA systems.

Typical parameters sent to SEÇBİS:

• Inlet and outlet flow (hourly average)
• pH (outlet)
• KOİ (outlet, from UV-VIS sensor)
• AKM/turbidity (outlet)
• Temperature
• Conductivity

SEÇBİS compliant modems and data transfer protocols (Modbus TCP, OPC UA) are standardized.

Modern Trends

• IIoT (Industrial Internet of Things): Wireless sensors, local analytics with edge computing
• Cloud SCADA: Access to facility SCADA via web on AWS/Azure instead of local server
• AI/ML-based optimization: Models that learn from past data and suggest aeration, dosing setpoints
• Digital Twin: Virtual model of the facility, tests "what-if" scenarios
• Mobile application: Operator can monitor live from tablet/phone
• Cybersecurity: SCADA now has an attack surface with IT/OT integration — segmentation, firewalls, IDS are essential

5 Common Mistakes in Automation Investment

1. Saving on sensor quality: Cheap sensors fail within 6 months, causing false alarms. Good sensors last 5-10 years.
2. Neglecting calibration: DO, pH, MLSS sensors require calibration every 3-6 months. Neglected sensors produce unreliable data.
3. Alarm fatigue: Very low thresholds create excessive alarms, causing operators to silence them without acknowledgment — real crises are missed.
4. Non-redundant system: If the PLC fails, the facility stops. Redundant PLC + UPS is essential.
5. Lack of training: Even the best SCADA software is useless if the operator is not familiar with it. Commissioning + continuous training is critical.

Conclusion

SCADA + PLC + sensors are not just an "extra" feature of a modern wastewater treatment plant, but are the center of efficiency. Properly established automation pays for itself in 2-4 years through energy and chemical savings. Compliance with regulations through SEÇBİS is automated; with modern add-ons like predictive maintenance, remote monitoring, and AI-based optimization, the facility reaches the level of a "smart plant."
